Xilingol League–Jiangsu (Ximeng-Taizhou)

The Xilingol League–Jiangsu HVDC project is a major ultra-high-voltage direct current (UHVDC) power transmission line in China. This project connects Xilingol League in Inner Mongolia to Jiangsu Province, spanning a distance of 1,620 kilometers. The transmission line operates at ±800 kV, which classifies it as an ultra-high-voltage system.

Technical Specifications

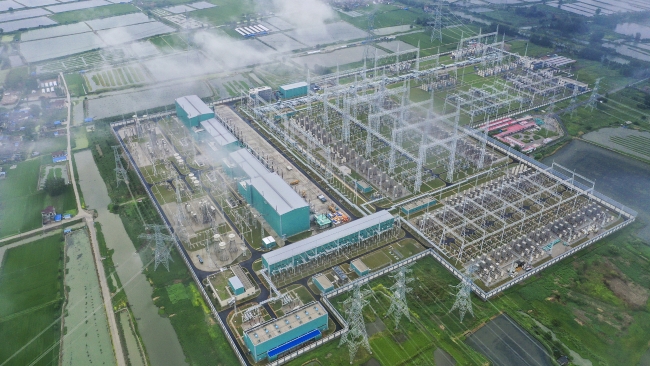

The project has a power rating of 10 GW, making it one of the highest capacity HVDC lines in the world. It utilizes two converter stations - one located in Xilingol League and the other in Taizhou, Jiangsu. These converter stations are responsible for converting alternating current (AC) to direct current (DC) for long-distance transmission and then back to AC for distribution.

Project Timeline

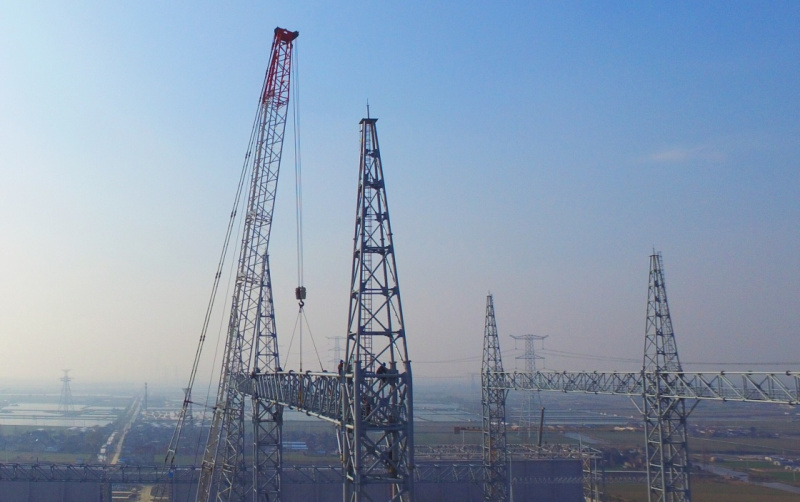

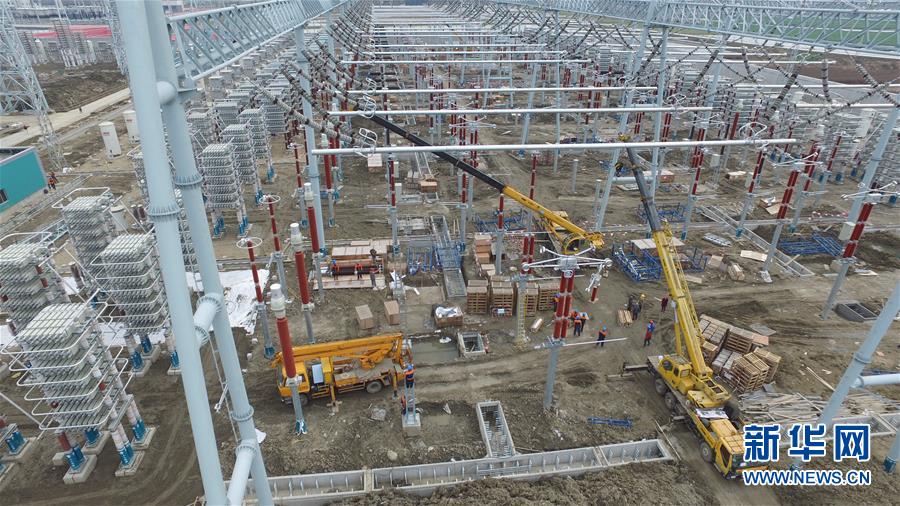

Construction of the Xilingol League–Jiangsu HVDC project began after receiving feasibility study approval in early 2015. The project was completed and put into operation in October 2017, ahead of its initially planned 2018 commissioning date.

Strategic Importance

This HVDC line serves an important purpose in China's energy strategy. It allows for the efficient transmission of electricity from energy-rich regions in the north to energy-demanding areas in the east. Specifically, it enables the transfer of power generated from wind farms and coal-fired plants in Inner Mongolia to the industrialized Jiangsu Province.

Technical Advantages

The use of UHVDC technology in this project offers several technical advantages. It significantly reduces transmission losses over such a long distance compared to traditional AC transmission. The ±800 kV voltage level allows for higher power transfer capacity with fewer transmission corridors, minimizing land use and environmental impact.

Advanced Technologies

The Xilingol League–Jiangsu HVDC project incorporates advanced technologies for improved reliability and efficiency. It likely uses voltage-sourced converters (VSC) with modern IGBT (Insulated-Gate Bipolar Transistor) technology, which provides better control of active and reactive power flow. The system also likely includes sophisticated control and protection systems to manage the complex operations of such a high-capacity HVDC link.

Broader Context

This project is part of China's broader initiative to develop a nationwide ultra-high-voltage grid. It contributes to the country's efforts to optimize energy resource allocation, reduce reliance on coal in eastern regions, and integrate more renewable energy sources into the national power system.

Significance

The successful implementation of the Xilingol League–Jiangsu HVDC project demonstrates China's growing expertise in UHVDC technology. It serves as a model for future long-distance, high-capacity power transmission projects both within China and potentially for other countries looking to modernize their power grids.
