Western HVDC Link

The Western HVDC Link is a high-voltage direct current (HVDC) subsea electrical connection in the United Kingdom. It connects Hunterston on the west coast of Scotland with Flintshire Bridge on the Wales/England border, spanning a total distance of approximately 420 km, of which 385 km is underwater. This £1.2 billion project was jointly delivered and is operated by SP Transmission (SPT) and National Grid Electricity Transmission (NGET).

Technical Specifications

The Western HVDC Link boasts several notable features. It is the highest capacity single subsea link in the world, with a transmission capacity of 2,250 MW, enough to supply the electrical demand of more than four million homes annually. The link operates at 600 kV DC, making it the highest voltage cable scheme to date. It is also the first bi-directional subsea interconnector, capable of transmitting energy in both directions.

Project Timeline and Construction

Construction of the Western HVDC Link began in 2013. While it was initially expected to be completed by March 2017, the project faced delays. Power started flowing through the link in December 2017, marking its fifth anniversary in 2022. The formal handover and full commissioning of the project occurred in November 2019.

Purpose and Benefits

The primary purpose of the Western HVDC Link is to enhance the transmission of renewable energy generated in Scotland to homes and businesses in Wales and England. It increases the interconnection capacity by over 2,200 megawatts, effectively doubling Scotland's import capacity. This not only contributes to the security of energy supply but also supports the UK government's ambitions of decarbonizing the economy and achieving net-zero carbon emissions.

Performance and Impact

In its first five years of operation, the Western HVDC Link transmitted 23,483 GWh of green energy. It has achieved an impressive 98.48% energy availability in the last 12 months, surpassing its 97% contract target. The project supported 450 high-quality jobs across its planning, development, and build stages, demonstrating its positive impact on local communities.

Technical Components

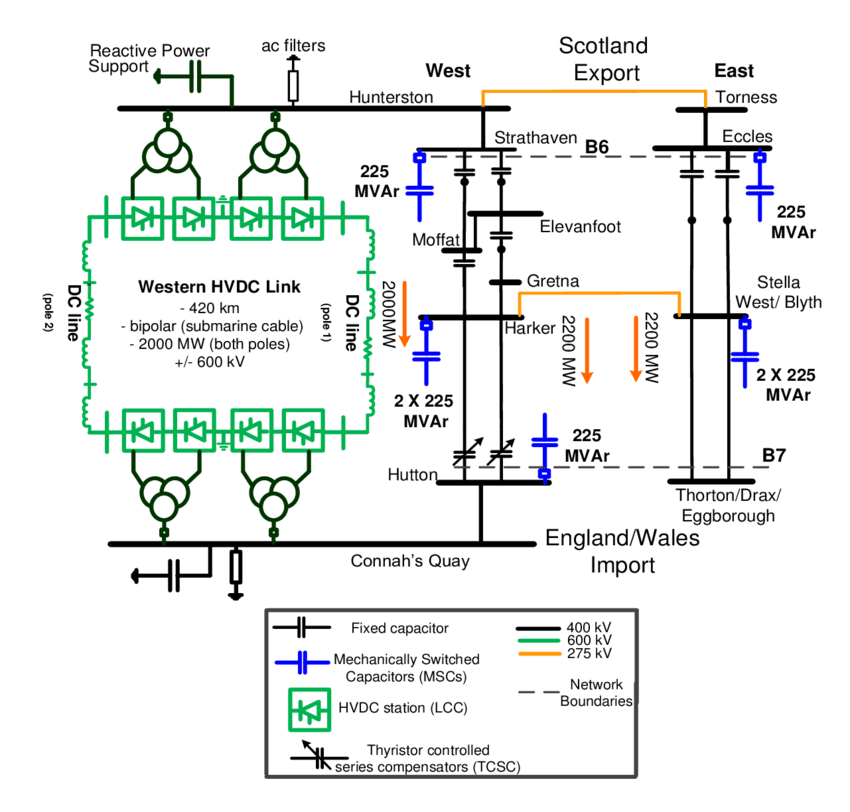

The Western HVDC Link consists of two converter stations: one at Connah's Quay in North Wales and another at Hunterston in West Scotland. These stations convert network AC current to DC current and vice versa. The link utilizes two HVDC cables along its route, employing cutting-edge technology to achieve its high power rating.

Challenges and Investigations

Despite its achievements, the Western HVDC Link has faced some challenges. Ofgem, the UK energy regulator, opened an investigation into National Grid Electricity Transmission and SP Transmission regarding the delivery and ongoing operation of the link. The investigation focuses on the project's late delivery and potential breaches of license conditions.

Future Prospects

The Western HVDC Link has a planned lifespan of 40 years, ensuring its long-term contribution to the UK's energy infrastructure. The experience gained from this project is being applied to future endeavors, such as the Eastern Link 1 Project, which aims to provide another critical energy link between Scotland and England by 2027.

In conclusion, the Western HVDC Link represents a significant advancement in the UK's energy infrastructure, playing a crucial role in the transmission of renewable energy and supporting the nation's transition to a low-carbon economy.
