HVDC Cross-Channel (IFA 2000)

The IFA 2000 (Interconnexion France Angleterre 2000) is a high-voltage direct current (HVDC) transmission link connecting the electrical grids of France and the United Kingdom. This submarine interconnector, commissioned in 1986, is one of the world's largest capacity submarine cable HVDC systems, capable of transmitting 2000 MW of power.

Technical Specifications

The IFA 2000 consists of two bipoles, each with a capacity of 1000 MW, operating at a DC voltage of ±270 kV. The link spans approximately 73 km in total, with 45 km of subsea cable crossing the English Channel. Eight submarine cables are laid in pairs across four trenches, buried 1.5 meters deep to protect them from fishing trawls and anchors. This arrangement also helps to cancel out the magnetic fields generated by the conductors.

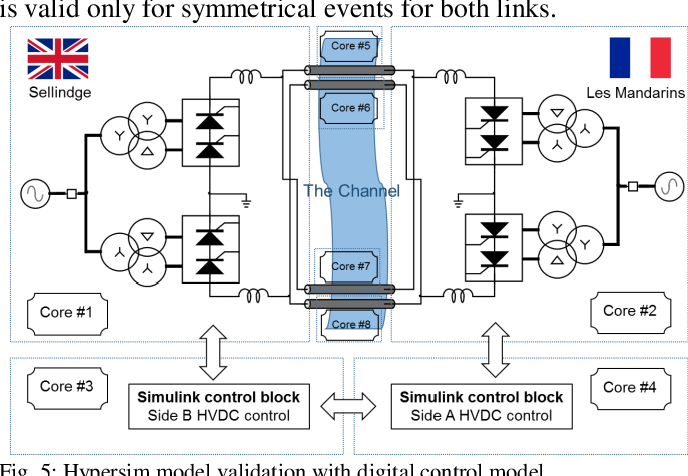

The converter stations are located at Sellindge near Ashford in the UK and Les Mandarins near Calais in France. These stations use thyristor valve technology for power conversion. Initially, the valves were air-cooled with analog control systems, but in 2011 and 2012, they were upgraded to water-cooled thyristor valves with digital control systems supplied by Alstom (now part of GE).

Historical Context

The IFA 2000 replaced an earlier 160 MW HVDC link that operated from 1961 to 1984. The decision to build the 2000 MW link was made in 1981, with construction starting in 1985 and full operation commencing in 1986. This upgrade significantly increased the power transmission capacity between the two countries.

Operational Significance

The link allows for bi-directional power flow, enabling both countries to import or export electricity based on market demands and energy availability. Historically, the bulk of power flow has been from France to Britain, taking advantage of France's nuclear power surplus. However, the link also allows Britain to export power during periods of high renewable energy generation or when France experiences high demand for electric heating.

Recent Developments

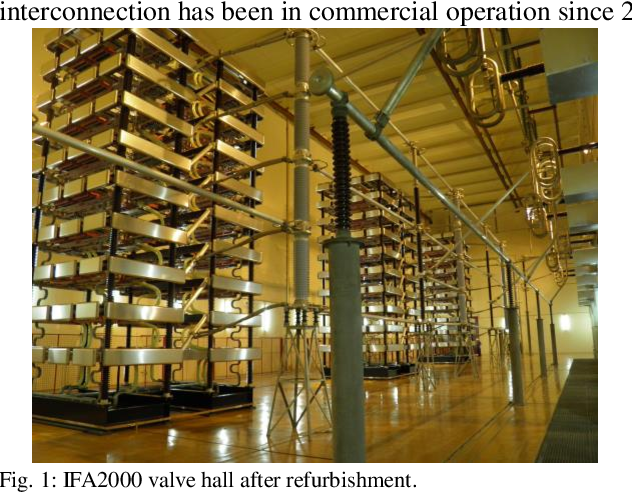

In 2011 and 2012, the IFA 2000 underwent a major refurbishment to enhance its overall availability and address obsolescence issues. This renovation included replacing the converter equipment and upgrading the control and protection systems. The project was completed in time for the 2012 London Olympic Games, ensuring a steady power supply during the event.

Unique Aspects

One notable feature of the IFA 2000 is that its two original converter stations were of completely different designs, requiring the replacement equipment to be compatible with both sides. This presented a significant engineering challenge during the refurbishment process.

Operational Management

The link is jointly operated by National Grid plc from the UK and Réseau de Transport d'Électricité (RTE) from France. These organizations have developed extensive expertise in managing this critical infrastructure over its 30+ years of operation.

Economic and Grid Stability Impact

The IFA 2000 plays a crucial role in the energy markets of both countries. It allows for the exploitation of differences in electricity prices and demand patterns between the UK and France, potentially leading to lower energy costs for consumers. The link also enhances grid stability by providing a means to balance supply and demand across a larger network.

Future Outlook

As both the UK and France continue to increase their reliance on renewable energy sources, the importance of the IFA 2000 in balancing these intermittent power sources is likely to grow. The link's ability to rapidly respond to changes in supply and demand makes it a valuable asset in the transition to a low-carbon energy system.
